Fire Rated Glass in the event of the fire can provide an effective barrier to fire, smoke & hot gasses.
There are 2 types of Fire-Rated Glass
1. Clear Fire Rated Glass
2. Clear Wired Fire Rated Glass
cLEAR FIRE RATED GLASS
1
unINSULATED

Single layer of glass without any insulation
specifications
Thickness
integrity
Stability
Insulation
Tested at
nO. OF LAYERS
6mm/8mm/10mm/12mm
120 minutes
120 minutes
None
CBRI, Roorkee
Single
INSULATED

Inter-layered glass with minimum 20 mins insulation as per NBC 2016
specifications
Thickness
integrity
Stability
insulation
Tested at
No. of layers
11mm/13mm/14mm
120 minutes
120 minutes
Up to 30 minutes
NABL, Effectis France/DIC Haryana
Two

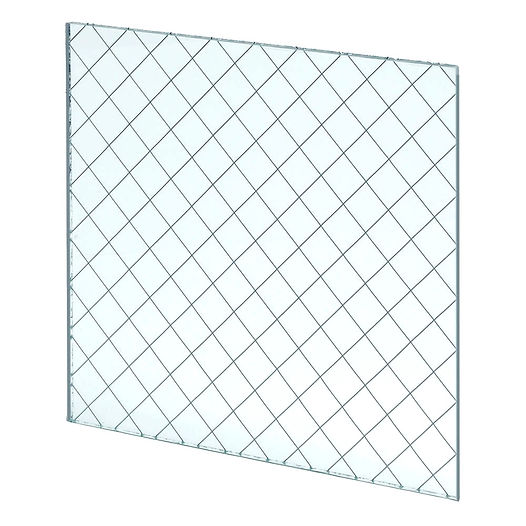

cLEAR wired
FIRE-RATED GLASS
Wired glass is produced by carefully embedding wire mesh or metal wires into glass.
On exposure to fire the glass fractures but is held in one piece by the wire mesh, thus maintaining integrity by preventing collapse, & the passage of smoke & flames. The use of these glasses can also act as a deterrent to potential intruders.
2
specifications
Thickness
integrity
Stability
test location
manufacturing
lead time
6.8mm
120 minutes
120 minutes
CBRI, Roorkee
Japan
Available in stock
Applications
-
Exteriors and interiors of general construction
-
Doors and windows of buildings where fire protection is required
-
Locations where fallout protection is required
